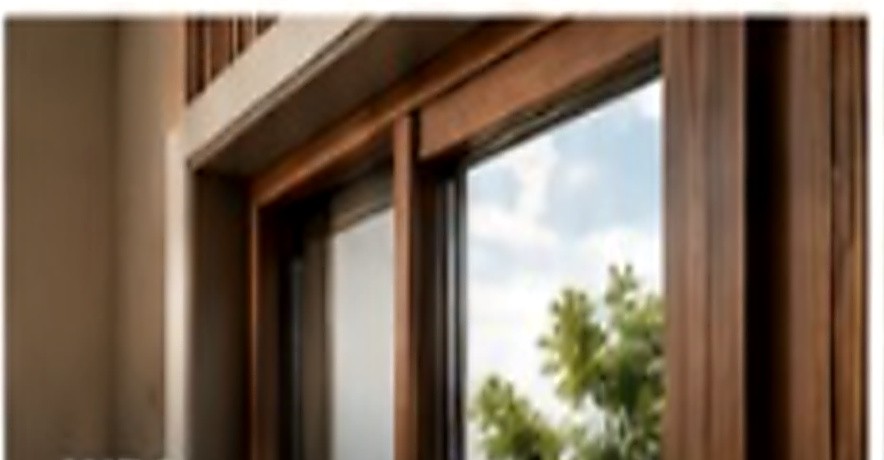

WPC window frames in a living room
Window chaukhat in two profiles
WPC Window Frame
Window frames that do not rot or swell in rain and sun.
Green Plastwood WPC window frames are made of the same high-density wood polymer composite as our door chaukhats. They are 100% water proof, termite and borer proof and weather and ageing resistant, so they hold their shape in rain, sun and humidity.
- Profiles
- 70 × 30 mm and 120 × 50 mm
- Length
- 7, 8, 9 and 10 ft
- Density
- 750 to 1200 kg/m³
- Colours
- 8 standard colours
- Material
- Wood polymer composite (WPC)
- Customisation
- Size, length and colour on bulk orders
- ISO 9001:2015 certified
- Same WPC as our lab-tested door frames
- Made in our own plants in Gujarat since 2012
About WPC Window Frame
A window frame sits in an outside wall, so it takes rain on one side and sun on the other. Wooden frames swell, then shrink, then the paint cracks and termites get in. A WPC frame does not absorb water and is not attacked by termites or borers, so it stays the size it was fitted.
Green Plastwood makes two window frame profiles, 70 × 30 mm and 120 × 50 mm, in 7 to 10 ft lengths and the same eight colours as our door chaukhats. They are cut, screwed, polished or laminated like wood. Profiles, lengths and colours can be customised on bulk orders.
Advantages
- 100% water proof, good for exterior walls
- Weather and ageing resistant
- Termite and borer proof
- Fire retardant
- Can be cut, screwed and polished like wood
- Low polish cost compared with wood
- Zero maintenance
- Environment friendly and recyclable
Common to every Green Plastwood WPC product
- UV protection
- Fire retardant
- Eco friendly
- Carpenter friendly
- 100% termite proof
- 100% recyclable
- 100% water proof
- Non toxic
- High density
- Anti corrosion
Window Frame Profiles
Two profile sizes. Pick a tab to see the details of each.
70 × 30 Mm Window Frame
The lighter of the two profiles, generally used for smaller windows and ventilators.
| Profile size | 70 × 30 mm |
|---|---|
| Length | 7, 8, 9 and 10 ft |
| Density | 750 to 1200 kg/m³ |
| Colours | 8 standard colours |
| Customisation | Size, length and colour on bulk orders |
120 × 50 Mm Window Frame
The heavier profile, generally used for larger window openings.
| Profile size | 120 × 50 mm |
|---|---|
| Length | 7, 8, 9 and 10 ft |
| Density | 750 to 1200 kg/m³ |
| Colours | 8 standard colours |
| Customisation | Size, length and colour on bulk orders |
The uses given for each profile are general guidance. Confirm the right profile for your opening with our team.
Specifications
| Window frame size | 70 × 30 mm · 120 × 50 mm |
|---|---|
| Length | 7, 8, 9 and 10 ftSize can be customised on bulk orders. |
| Density | 750 to 1200 kg/m³ |
| Colours | Light Ivory, Yellow Ivory, Pure White, Beach White, Teak Wood, Chocolate Brown, Coco Brown, BlackNFC colour can be customised on bulk orders. |
| Material | Wood polymer composite (WPC) |

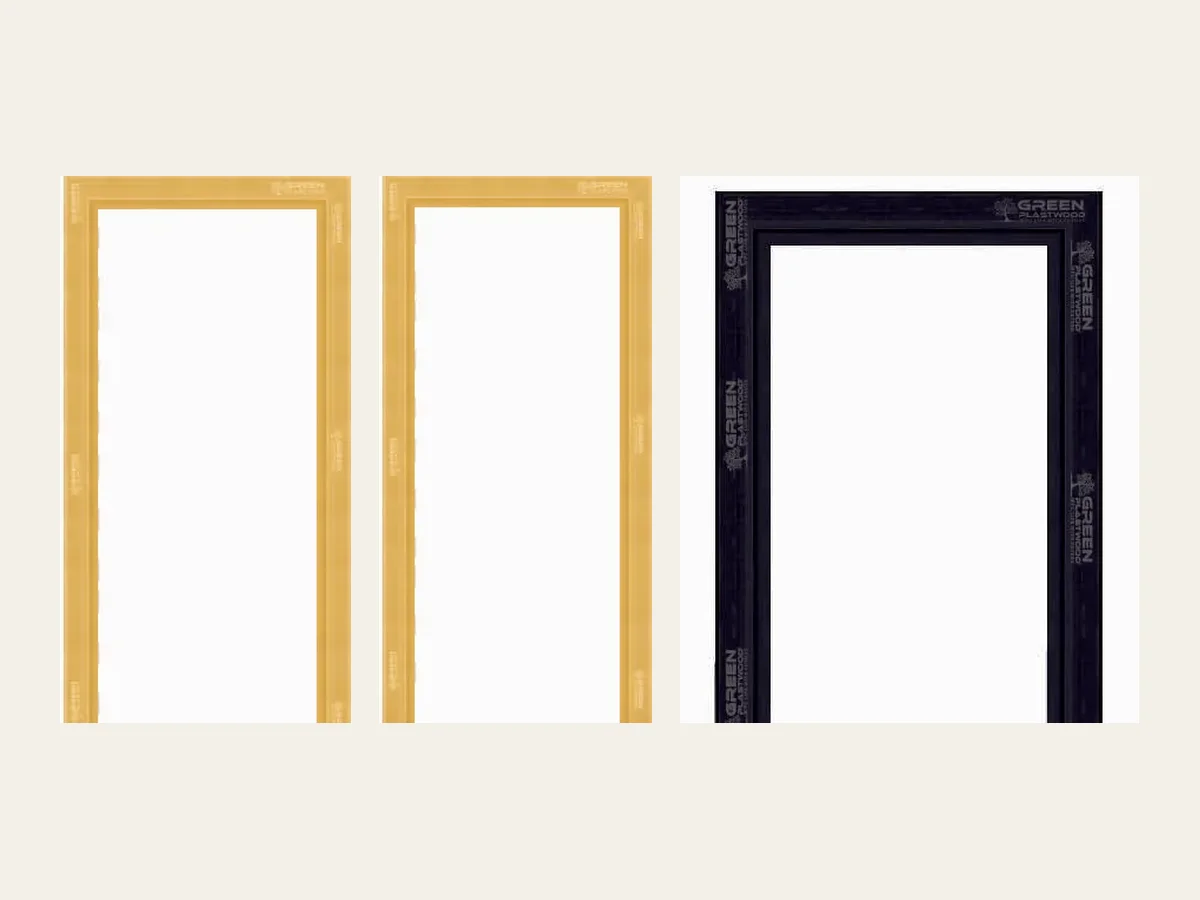

Colours And Finish
Eight standard colours, the same as our door chaukhats, so the door and window frames in a room can match.
- Light Ivory
- Yellow Ivory
- Pure White
- Beach White
- Teak Wood
- Chocolate Brown
- Coco Brown
- Black
Screen colours vary, so ask for a physical sample before you order. Other (NFC) colours can be made on bulk orders.

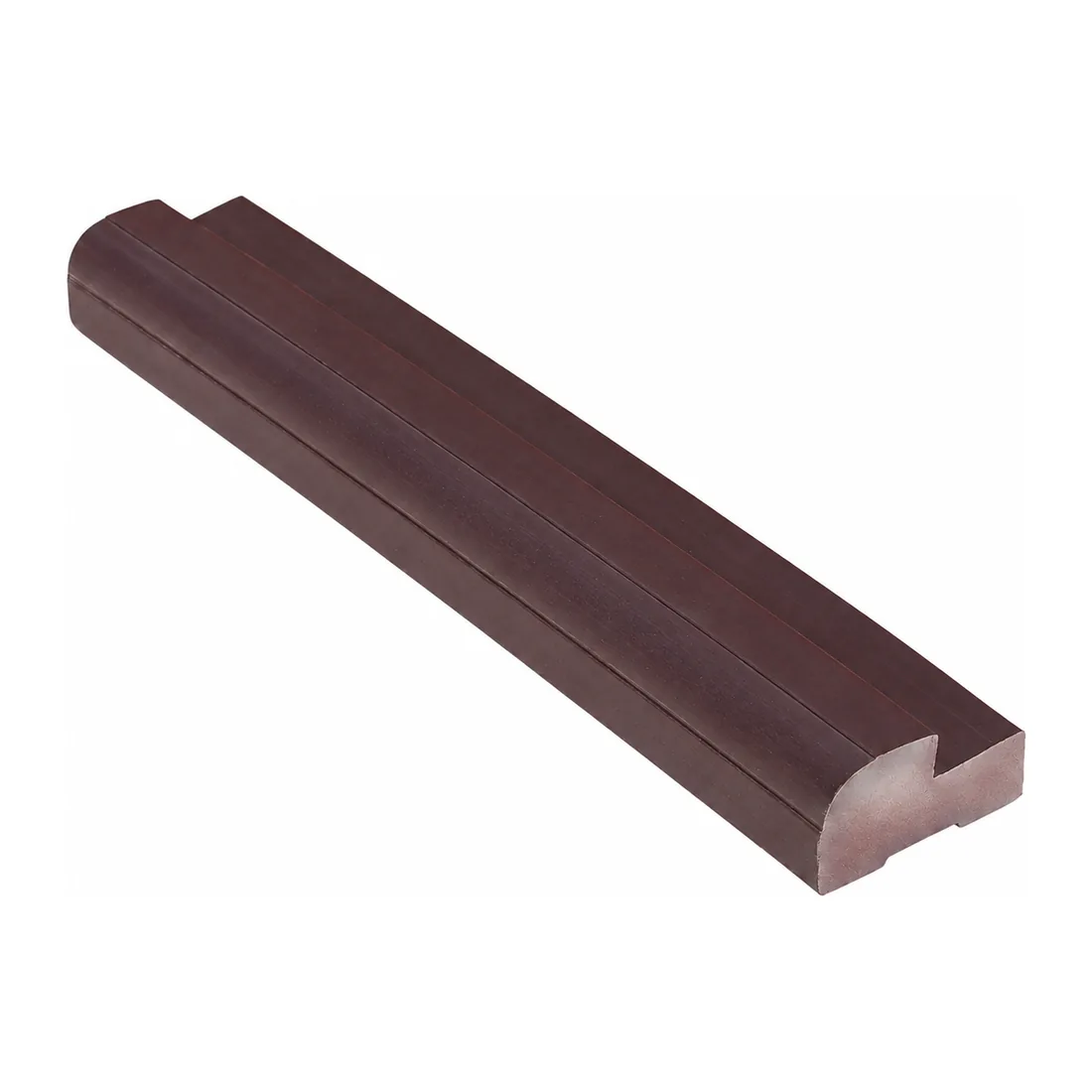

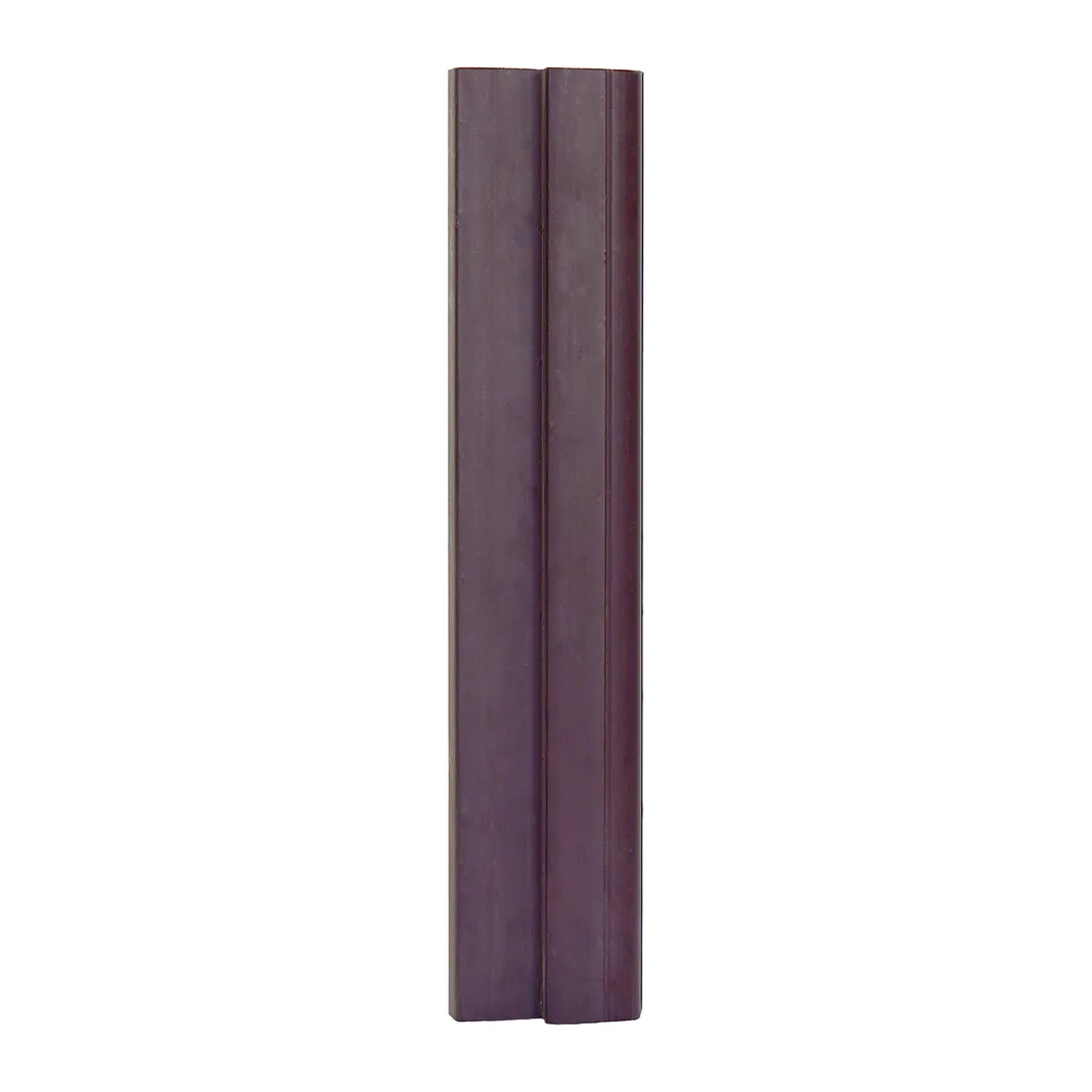

Profiles Up Close
WPC Compared With Plywood
From our product catalogue. On an outside wall the two rows that matter most are water and weather: WPC is water proof and weather and ageing resistant, and it is still worked with normal carpentry tools.
| Property | Green Plastwood WPC | Plywood |
|---|---|---|
| Water & moisture proof | ✓ | ✕ |
| Termite & pest proof | ✓ | ✕ |
| No shrinking, no swelling | ✓ | ✕ |
| Fire retardant | ✓ | ✕ |
| Borer proof | ✓ | ✕ |
| Corrosion retardant | ✓ | ✓ |
| Maintenance friendly | ✓ | ✕ |
| Environment friendly | ✓ | ✕ |
| Property | Green Plastwood WPC | Plywood |
|---|---|---|
| Smooth surface | Much smoother | Less smooth |
| Outdoor adaptability | ✓ | ✓ |
| Gluing & lamination | ✓ | ✓ |
| Weather & ageing resistant | ✓ | ✓ |
| High screw adaptability | ✓ | ✓ |
| Sawing & cutting | ✓ | ✓ |
| Use of traditional tools | ✓ | ✓ |
Where WPC Window Frames Are Used
Home
Living room, bedroom and kitchen windows, including those on rain-facing walls.

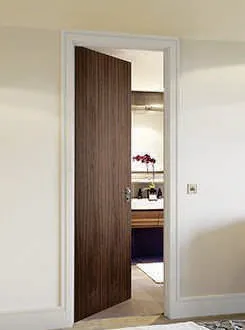

Bathroom
Bathroom windows and ventilators that stay damp.

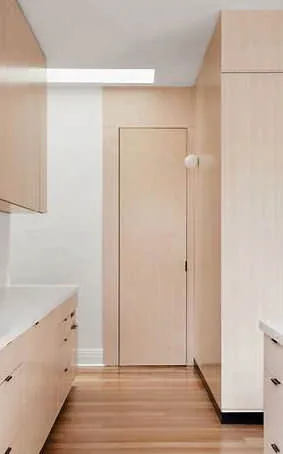

Office
Window frames for offices and commercial buildings.
School
Classroom windows that take daily wear.
Clinic
Frames that are cleaned often and need no polishing.
Also supplied for
- Residential projects
- Villas
- Commercial buildings
- Hospitality projects
- Educational institutions
- Healthcare facilities
Installation Guide
Window frames are cut, joined and fixed the same way as our door chaukhats. The drawings below are from the installation guide in our catalogue.
- Step 1
Cut The Posts And The Head
Cut the two vertical posts to the opening height and the head piece to the opening width, allowing for the joint you will use. The drawings show the types of cutting for vertical and horizontal posts.
- Step 2

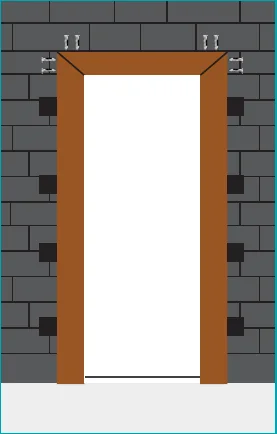

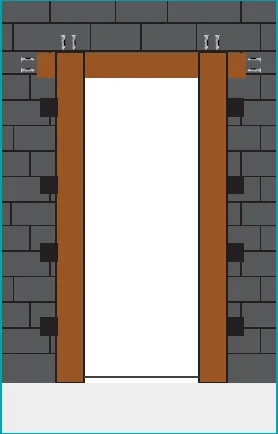

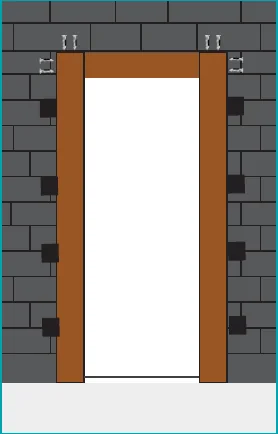

Make The Corner Joints
Join the head to the posts with one of the joints shown. Screw the joint; WPC frames are joined with screws.

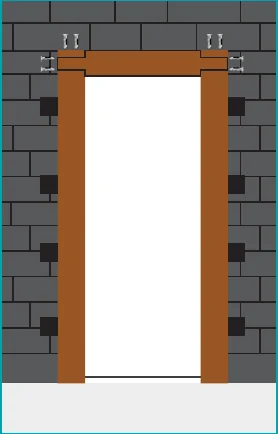

- Step 3
Fix The Frame In The Wall
Place the frame in the opening, check both posts with a spirit level, then fix it to the wall. Keep the frame square so the shutter closes evenly.
Lab-tested Performance

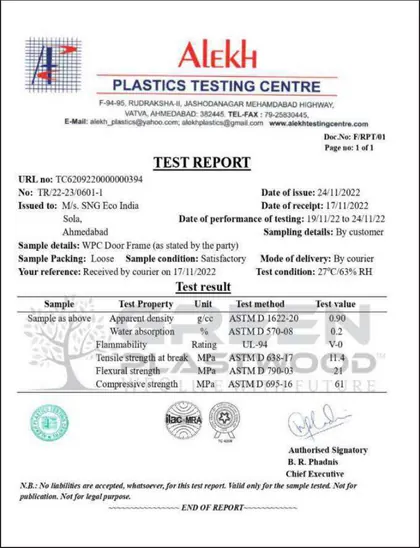

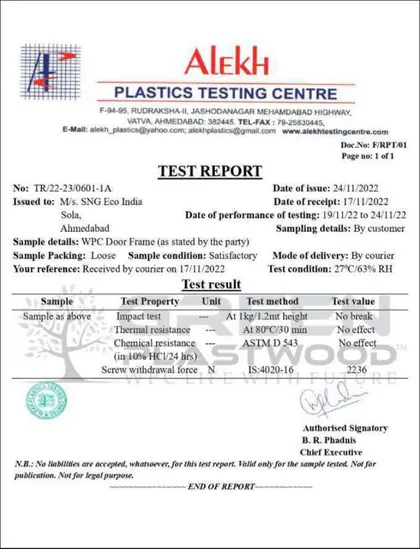

Window frames are made of the same WPC, at the same density, as our door frames. The results below are for a Green Plastwood WPC door frame sample tested by Alekh Plastics Testing Centre, Ahmedabad. Reports dated 24 November 2022.
| Test | Method | Result |
|---|---|---|
| Apparent density | ASTM D 1622-20 | 0.90 g/cc |
| Water absorption | ASTM D 570-08 | 0.2% |
| Flammability | UL-94 | V-0 rating |
| Tensile strength at break | ASTM D 638-17 | 11.4 MPa |
| Flexural strength | ASTM D 790-03 | 21 MPa |
| Compressive strength | ASTM D 695-16 | 61 MPa |
| Impact test | 1 kg from 1.2 m height | No break |
| Thermal resistance | 80 °C for 30 minutes | No effect |
| Chemical resistance | ASTM D 543, 10% HCl for 24 hours | No effect |
| Screw withdrawal force | IS 4020-16 | 2236 N |
Results are for the sample tested (WPC door frame), at 27 °C and 63% relative humidity. See all certificates and test reports
Tap a report to read it.
Ordering Information
What To Tell Us
- Profile: 70 × 30 mm or 120 × 50 mm
- Length: 7, 8, 9 or 10 ft
- Colour: one of the 8 standard colours
- Quantity and delivery city
- Your window drawing, if you need a custom profile
Minimum Order And Customisation
- Standard profiles and colours
- Ask our team for stock and minimum quantity
- Custom size or length
- On bulk orders
- Custom (NFC) colour
- On bulk orders
Samples And Support
Screen colours vary. Ask for a physical sample before you place the order, and send us your drawing if you need a custom size.
Catalogue And Guides
Window frame sizes are listed with the chaukhat specification in the company profile.
Guides
WPC Window Frame: Common Questions
What sizes are WPC window frames available in?
Green Plastwood WPC window frames are made in 70 × 30 mm and 120 × 50 mm profiles, in 7, 8, 9 and 10 ft lengths. Sizes can be customised on bulk orders.
Are WPC window frames good for exterior walls?
Yes. WPC is 100% water proof and weather and ageing resistant, and our catalogue lists it as best used as an exterior-grade material. It does not rot, swell or get termites like a wooden window frame.
Which colours can I choose?
Light Ivory, Yellow Ivory, Pure White, Beach White, Teak Wood, Chocolate Brown, Coco Brown and Black. Other colours can be made on bulk orders.
Can WPC window frames be painted or polished?
Yes. WPC is processed like natural wood: it is cut, screwed, polished or laminated, and polishing costs less than on wood.
What is the density?
Window frames are made at 750 to 1200 kg/m³, the same range as our door chaukhats. A lab-tested door-frame sample showed 0.90 g/cc density, 0.2% water absorption and a UL-94 V-0 rating.
How is a WPC window frame installed?
Like a wooden one. The frame members are cut, joined at the corners with screws and fixed in the wall opening, using normal carpentry tools.
Do WPC window frames need termite treatment?
No. They are termite and borer proof, so no chemical treatment is needed.
