WPC chaukhat with a WPC door
Door frames
WPC Chaukhat Door Frames
Door frames that stay straight in bathrooms and kitchens.
Wooden chaukhats in bathrooms and kitchens swell, rot at the bottom and get termites. Green Plastwood WPC chaukhats are 100% water proof, termite and borer proof and fire retardant, so the frame you fit today stays the same for years.
- Types
- Single rebate and double rebate
- Sizes
- 12 sizes, 60 × 30 mm to 150 × 63 mm
- Length
- 7, 8, 9 and 10 ft
- Density
- 750 to 1200 kg/m³
- Colours
- 8 standard colours
- Warranty
- 30 years*
- ISO 9001:2015 certified
- Lab tested: 0.2% water absorption, UL-94 V-0
- Made in our own plants in Gujarat since 2012
*Ask for the warranty terms with your quote.
About WPC Chaukhat
A chaukhat is the frame fixed in the wall that carries the door. It is also the part that fails first: it stands on a wet floor and it is the first thing termites reach. Green Plastwood chaukhats are made of wood polymer composite (WPC) at 750 to 1200 kg/m³, so they do not absorb water, swell or rot.
They are worked like wood. Your carpenter cuts, joins and screws them with the same tools, and the frame can be painted, polished or laminated. Choose single or double rebate, three profile models, four lengths and eight colours. Sizes and colours can be customised on bulk orders.
Advantages
- Environment friendly, eco-recycle product
- 100% water proof and moisture proof
- Fire retardant
- Non-toxic and insect resistant
- Bacteria and fungus resistant
- Best to use as exterior-grade material
- Termite and borer proof
- High load-bearing capacity
- Can be processed like natural wood and solid wood
- Stands up to high moisture and humidity
- Low polish cost compared with wood
- Zero maintenance
Common to every Green Plastwood WPC product
- UV protection
- Fire retardant
- Eco friendly
- Carpenter friendly
- 100% termite proof
- 100% recyclable
- 100% water proof
- Non toxic
- High density
- Anti corrosion
Chaukhat Types
Two frame types and three profile models. Pick a tab to see the details of each.
Single Rebate Chaukhat
One rebate, the step where the door shutter sits, for one door. This is the standard frame for bedroom, bathroom, kitchen and main doors.
| Sizes with drawings | 75 × 50 · 100 × 50 · 100 × 63 · 125 × 63 · 150 × 63 mm |
|---|---|
| Other sizes | 60 × 30 · 65 × 40 · 90 × 45 · 90 × 63 mm |
| Profile models | Mould & Groove · Mould & Plain · Square150 × 63 mm is made in the Square model. |
| Rebate | 32 to 38 mm wide × 12 mm deepFrom the size chart; see each drawing for the exact figure. |
| Length | 7, 8, 9 and 10 ft |
| Colours | 8 standard colours |
Double Rebate Chaukhat
A rebate on both sides of the frame, so two shutters can hang in one opening, for example a main door with a mesh door.
| Sizes | 120 × 50 · 125 × 63 · 150 × 63 mm |
|---|---|
| Length | 7, 8, 9 and 10 ft |
| Density | 750 to 1200 kg/m³ |
| Colours | 8 standard colours |
| Profile drawing | Shared with your quoteTell us the size and we send the drawing. |

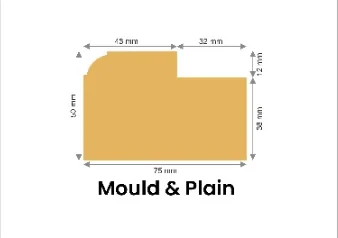

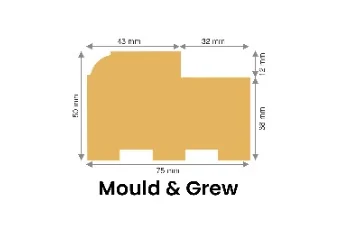

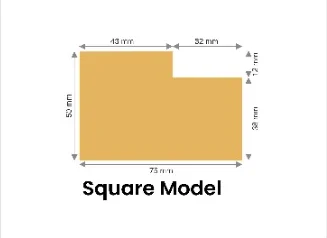

The model changes the look of the frame edge, not its strength. All three are shown here in 75 × 50 mm. Tap a drawing for the dimensions.

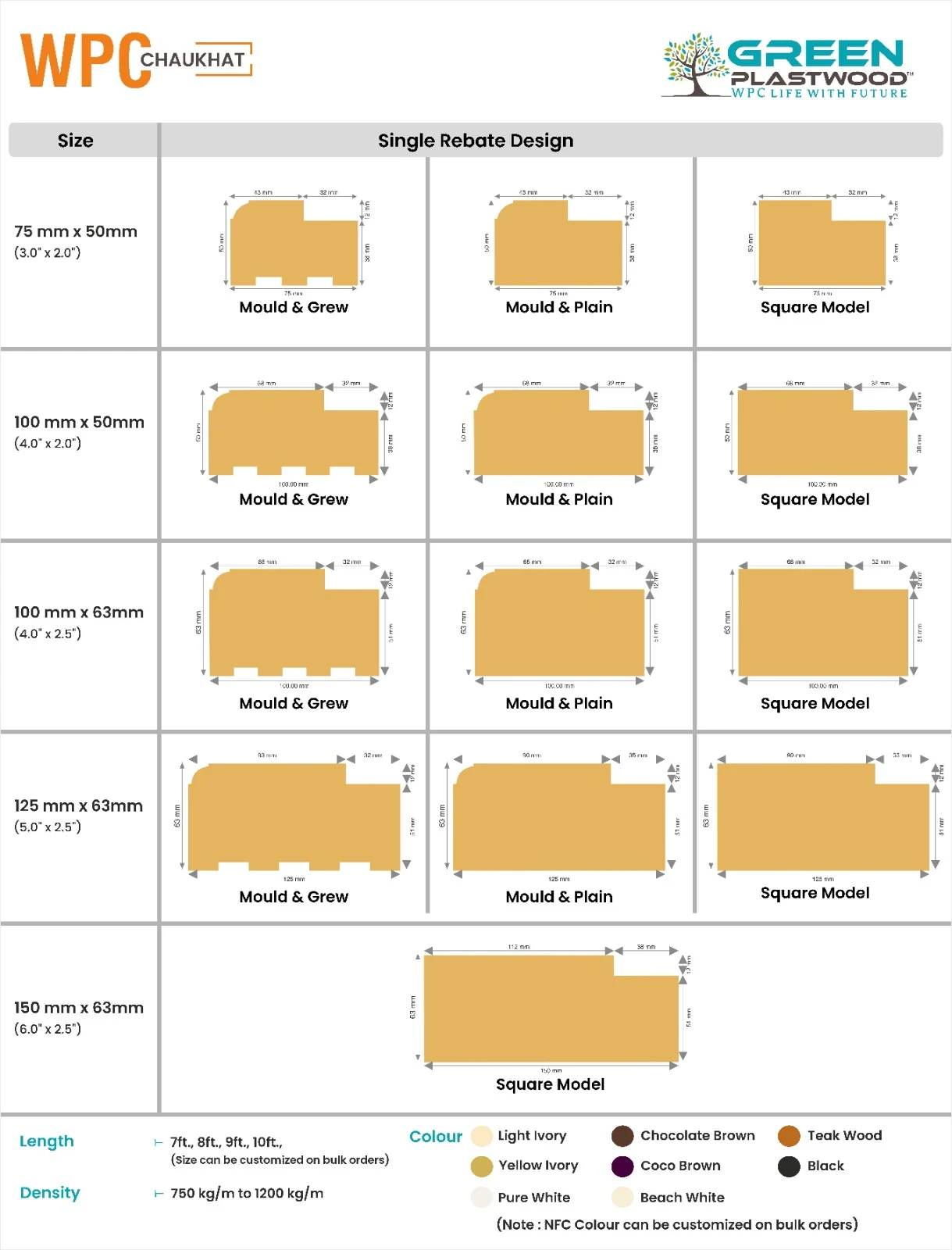

Sizes And Profile Drawings
A size is written as width × thickness in millimetres. The width should match your finished wall, and the thickness depends on how heavy the door is.
| Size | Inches | Profile models | Rebate (width × depth) | Commonly used for* |
|---|---|---|---|---|
| Single rebate | ||||
| 60 × 30 mm | – | On request | – | Smaller openings, cupboards, special requirements |
| 65 × 40 mm | – | On request | – | Smaller openings, cupboards, special requirements |
| 75 × 50 mm | 3.0" × 2.0" | Mould & Groove, Mould & Plain, Square | 32 × 12 mm | Bathrooms, toilets, store rooms, light internal doors |
| 90 × 45 mm | – | On request | – | Smaller openings, special requirements |
| 90 × 63 mm | – | On request | – | Smaller openings, special requirements |
| 100 × 50 mm | 4.0" × 2.0" | Mould & Groove, Mould & Plain, Square | 32 × 12 mm | Bedroom and internal doors in 4" walls |
| 100 × 63 mm | 4.0" × 2.5" | Mould & Groove, Mould & Plain, Square | 32 × 12 mm | Internal doors where a heavier door is used |
| 125 × 63 mm | 5.0" × 2.5" | Mould & Groove, Mould & Plain, Square | 32 × 12 mm35 × 12 mm in Mould & Plain and Square | Main doors and 5" walls |
| 150 × 63 mm | 6.0" × 2.5" | Square | 38 × 12 mm | Main doors and 6" walls |
| Double rebate | ||||
| 120 × 50 mm | – | On request | – | Openings with two shutters, e.g. a main door and a mesh door |
| 125 × 63 mm | 5.0" × 2.5" | On request | – | Openings with two shutters |
| 150 × 63 mm | 6.0" × 2.5" | On request | – | Openings with two shutters |
*General guidance only. Confirm the right size for your wall and door with our team. Every size is made in 7, 8, 9 and 10 ft lengths at 750 to 1200 kg/m³. Sizes can be customised on bulk orders.
How To Choose A Size
- Measure the finished wall thickness, including plaster.
- Pick the frame width closest to it: 75, 100, 125 or 150 mm.
- Pick 50 mm thickness for light doors and 63 mm for heavier or main doors.
- Choose single or double rebate.
- Choose the length: 7 ft for standard doors, 8 to 10 ft for taller openings.
- Choose one of the 8 colours.

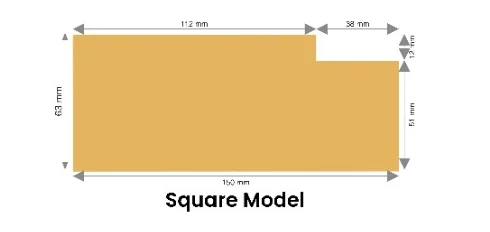

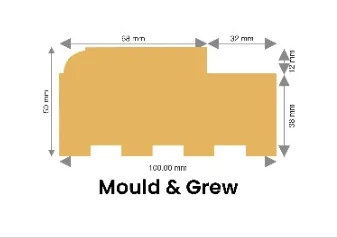

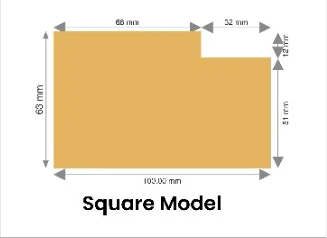

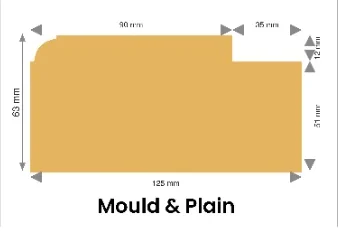

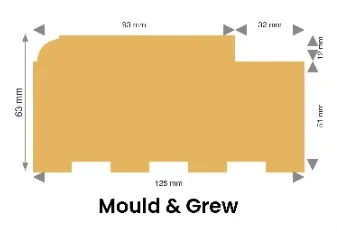

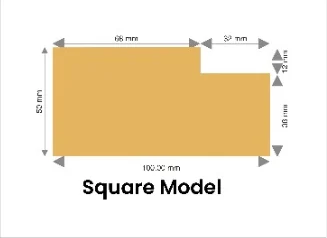

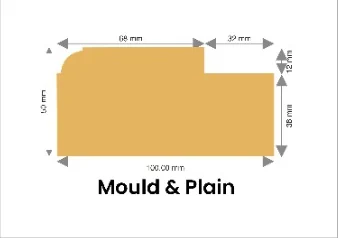

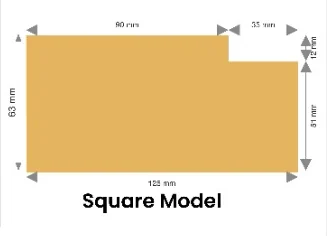

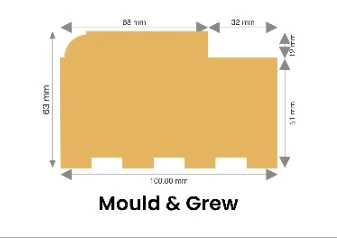

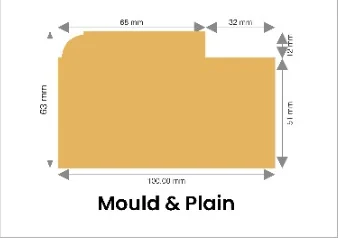

Profile Drawings, Single Rebate
Tap a drawing to see the dimensions.

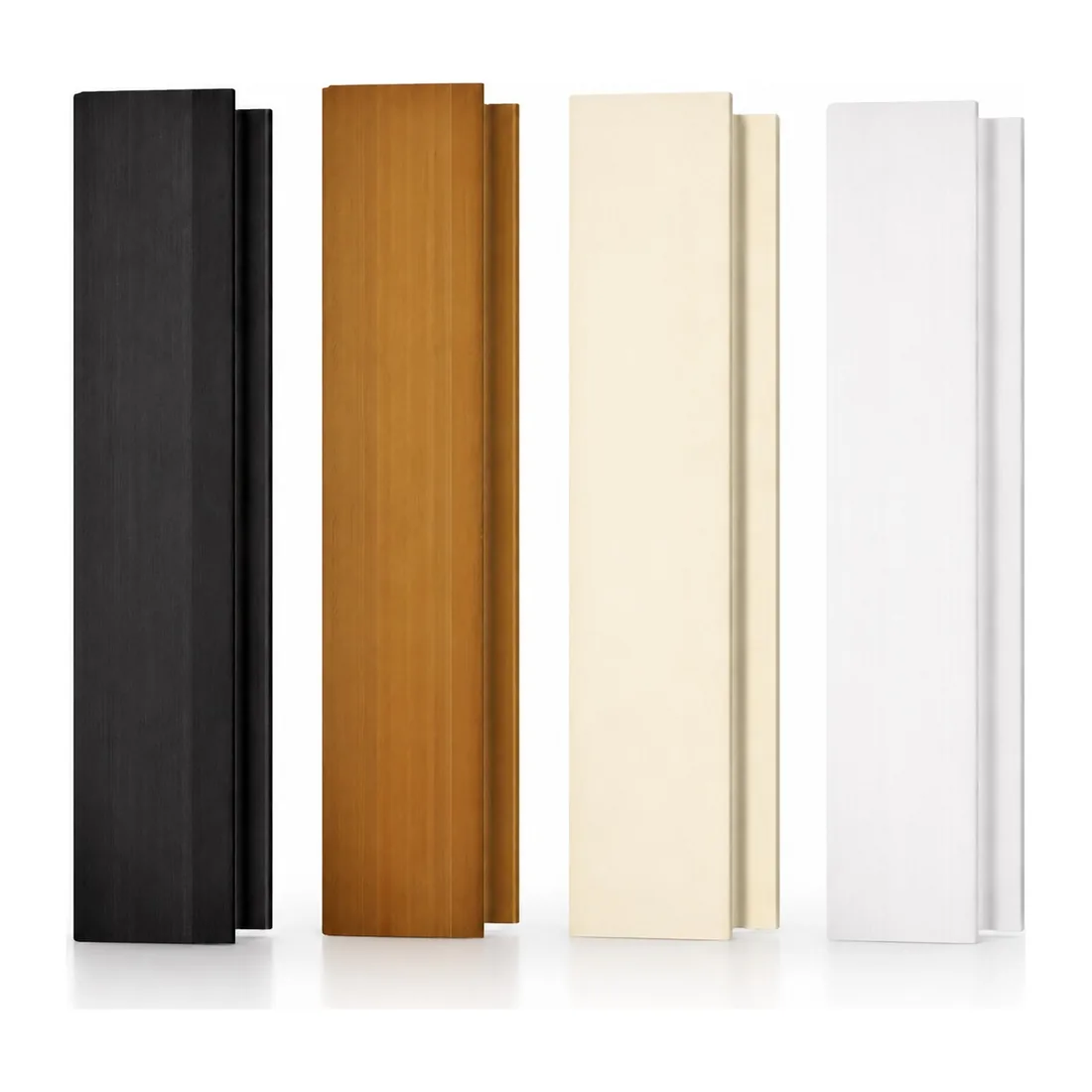

Colours And Finish
Eight standard colours. The colour runs through the profile, and the frame can also be painted, polished or laminated.
- Light Ivory
- Yellow Ivory
- Pure White
- Beach White
- Teak Wood
- Chocolate Brown
- Coco Brown
- Black
Screen colours vary, so ask for a physical sample before you order. Other (NFC) colours can be made on bulk orders.

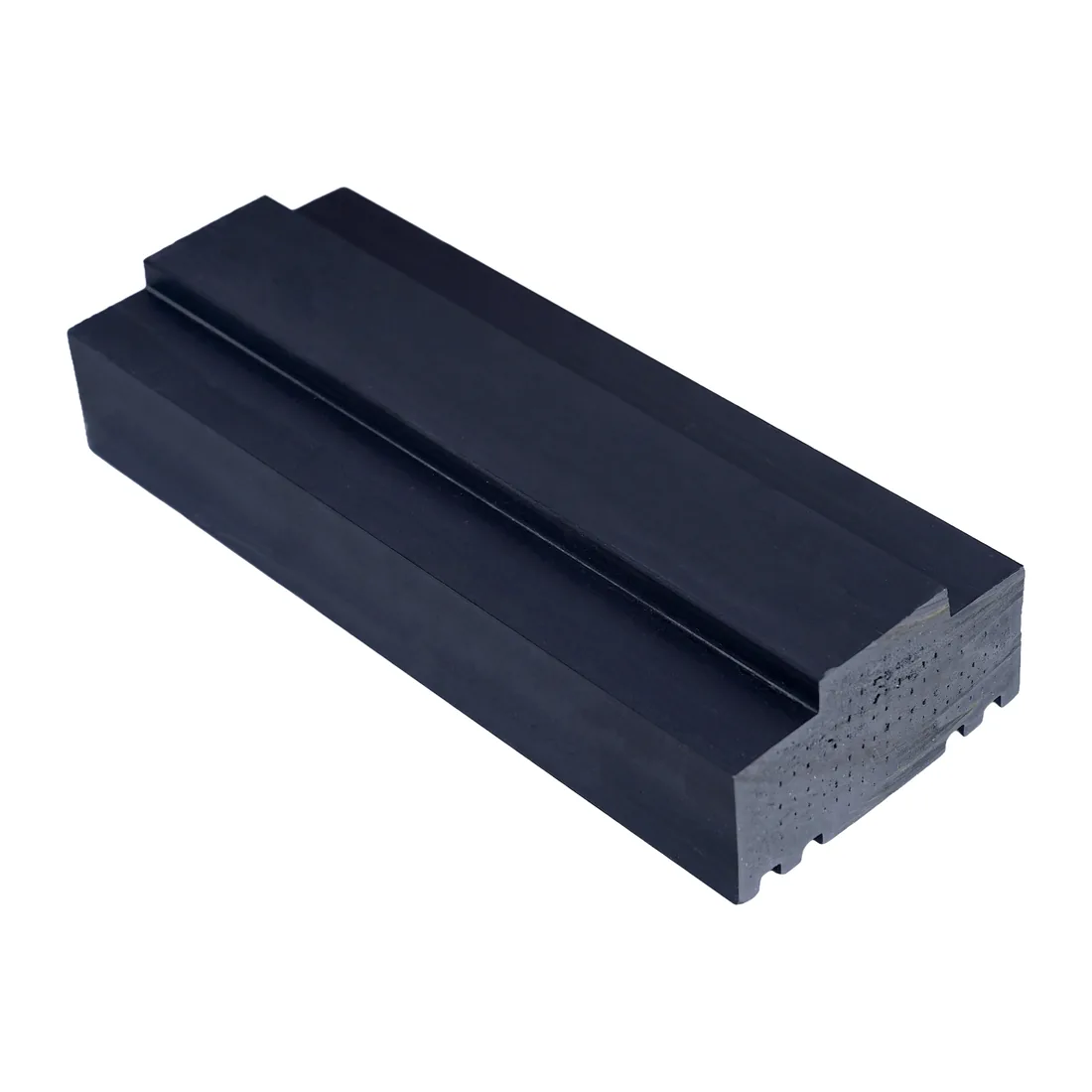

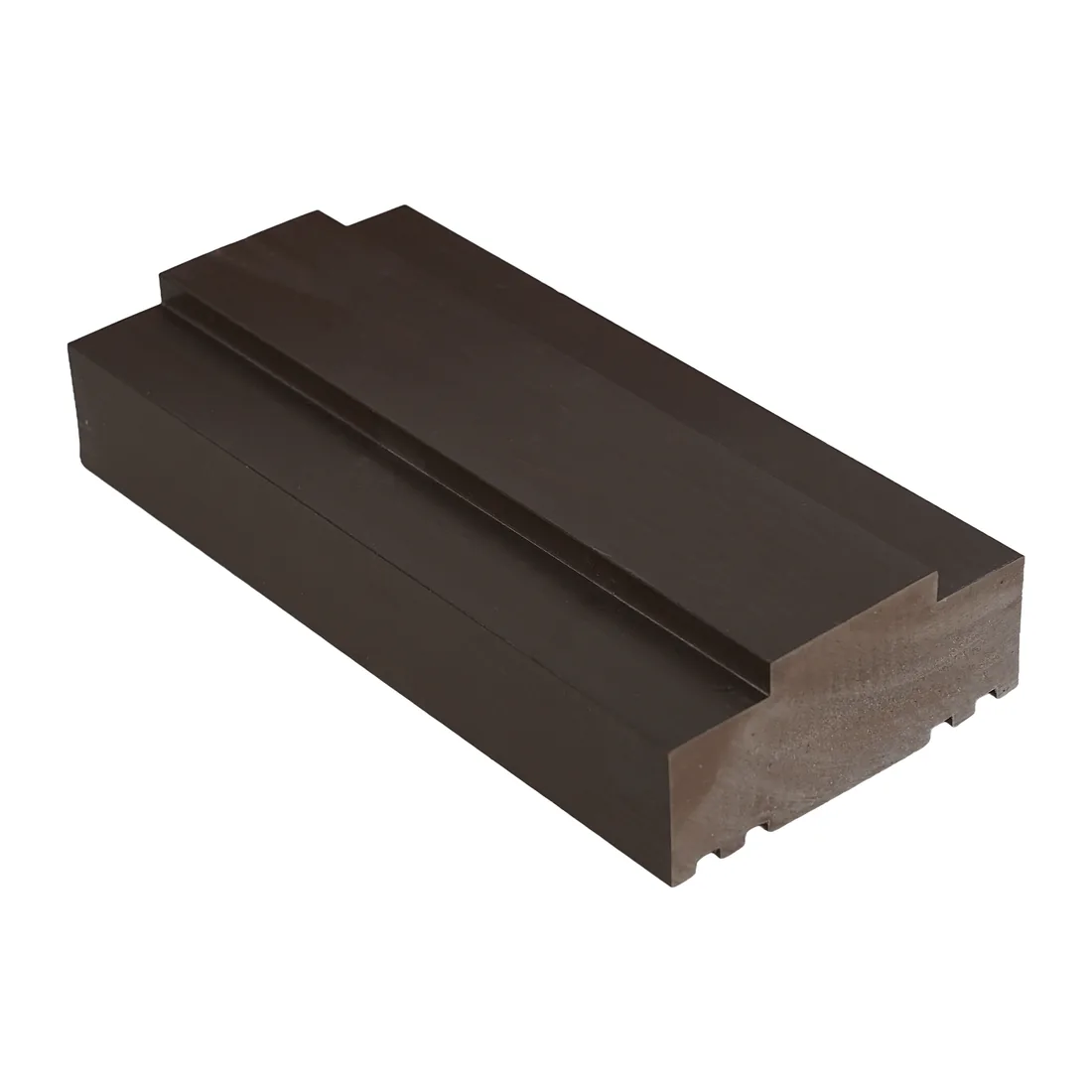

Profiles Up Close
Real product photos of our WPC chaukhat door frames in various installations. Tap a photo to enlarge it and enquire.
WPC Compared With Plywood
From our product catalogue. Wooden and plywood frames need termite treatment and care around water. WPC needs neither, and it is still cut, screwed and laminated with normal carpentry tools.
| Property | Green Plastwood WPC | Plywood |
|---|---|---|
| Water & moisture proof | ✓ | ✕ |
| Termite & pest proof | ✓ | ✕ |
| No shrinking, no swelling | ✓ | ✕ |
| Fire retardant | ✓ | ✕ |
| Borer proof | ✓ | ✕ |
| Corrosion retardant | ✓ | ✓ |
| Maintenance friendly | ✓ | ✕ |
| Environment friendly | ✓ | ✕ |
| Property | Green Plastwood WPC | Plywood |
|---|---|---|
| Smooth surface | Much smoother | Less smooth |
| Outdoor adaptability | ✓ | ✓ |
| Gluing & lamination | ✓ | ✓ |
| Weather & ageing resistant | ✓ | ✓ |
| High screw adaptability | ✓ | ✓ |
| Sawing & cutting | ✓ | ✓ |
| Use of traditional tools | ✓ | ✓ |
Where WPC Chaukhats Are Used
Any door opening, and above all the ones that get wet.
Bathroom And Toilet
Frames that stand on a wet floor every day without swelling or rotting at the bottom.
Home
Bedroom, kitchen and main door frames in one size and colour across the flat.
Office
Frames for cabins, meeting rooms and washrooms.
School And College
Classroom and washroom frames that are washed daily and take heavy use.
Hospital And Clinic
Frames that are cleaned often and need no termite treatment.
Also supplied for
- Residential homes
- Apartments
- Villas
- Hotels
- Hospitals
- Schools
- Offices
- Commercial buildings
- Institutional projects
Installation Guide
A WPC chaukhat is installed the same way as a wooden one, with the same saw, drill and screws. It needs no termite treatment.
- Step 1
Cut The Posts And The Head
Cut the two vertical posts to the opening height and the head piece to the opening width, allowing for the joint you will use. The drawings show the types of cutting for vertical and horizontal posts.
- Step 2
Make The Corner Joints
Join the head to the posts with one of the joints shown. Screw the joint; WPC frames are joined with screws.
- Step 3
Fix The Frame In The Wall
Place the frame in the opening, check both posts with a spirit level, then fix it to the wall. Keep the frame square so the shutter closes evenly.
What You Need
- Two vertical posts and one head piece of the right size
- A fine-tooth saw or a mitre saw
- Drill, screws and wall plugs or hold-fasts
- Spirit level and measuring tape
After Fitting
Clean the frame with a damp cloth. If you want a different shade, the frame can be painted, polished or laminated. In bathrooms, fix the frame before tiling so the tiles finish neatly against it.
Lab-tested Performance
A Green Plastwood WPC door frame sample was tested by Alekh Plastics Testing Centre, Ahmedabad. Reports dated 24 November 2022.
| Test | Method | Result |
|---|---|---|
| Apparent density | ASTM D 1622-20 | 0.90 g/cc |
| Water absorption | ASTM D 570-08 | 0.2% |
| Flammability | UL-94 | V-0 rating |
| Tensile strength at break | ASTM D 638-17 | 11.4 MPa |
| Flexural strength | ASTM D 790-03 | 21 MPa |
| Compressive strength | ASTM D 695-16 | 61 MPa |
| Impact test | 1 kg from 1.2 m height | No break |
| Thermal resistance | 80 °C for 30 minutes | No effect |
| Chemical resistance | ASTM D 543, 10% HCl for 24 hours | No effect |
| Screw withdrawal force | IS 4020-16 | 2236 N |
Results are for the sample tested (WPC door frame), at 27 °C and 63% relative humidity. See all certificates and test reports
Tap a report to read it.
Ordering Information
What To Tell Us
- Frame type: single or double rebate
- Size: width × thickness in mm
- Profile model: Mould & Groove, Mould & Plain or Square
- Length: 7, 8, 9 or 10 ft
- Colour: one of the 8 standard colours
- Quantity and delivery city
Minimum Order And Customisation
- Standard sizes and colours
- Ask our team for stock and minimum quantity
- Custom size, length or density
- On bulk orders
- Custom (NFC) colour
- On bulk orders
- Warranty
- 30 years*. Ask for the terms with your quote
Samples And Support
Screen colours vary. Ask for a physical sample before you place the order, and send us your drawing if you need a custom size.
Catalogue And Guides
The chaukhat pages are in the company profile: specification, advantages, installation guide and applications.
Company Profile 2026All products, sizes, colours and certificates. 19 pages.Download PDF ↓Chaukhat size chartSingle rebate drawings, lengths, density and colours. 1 page.Download image ↓Guides
WPC Chaukhat: Common Questions
What sizes are WPC chaukhats available in?
Single rebate frames come in 75 × 50, 100 × 50, 100 × 63, 125 × 63 and 150 × 63 mm, plus 60 × 30, 65 × 40, 90 × 45 and 90 × 63 mm. Double rebate frames come in 120 × 50, 125 × 63 and 150 × 63 mm. Standard lengths are 7, 8, 9 and 10 ft. Sizes can be customised on bulk orders.
What is the difference between single and double rebate?
The rebate is the step cut into the frame where the door shutter sits. A single rebate frame has one step and takes one door. A double rebate frame has a step on both sides, so two shutters can hang in the same opening, for example a main door and a mesh door.
Which model should I choose: Mould & Groove, Mould & Plain or Square?
They change the look of the frame edge, not its strength. Mould & Groove has a rounded edge with grooves on the back face, Mould & Plain has a rounded edge with a plain back, and Square has straight edges for a flat, modern look.
Are WPC chaukhats suitable for bathrooms and kitchens?
Yes. Green Plastwood WPC chaukhats are 100% water proof and moisture proof, so they do not swell, rot or warp in bathrooms, kitchens or other humid areas.
Do WPC chaukhats need anti-termite treatment?
No. The frames are termite and borer proof and bacteria and fungus resistant, so no chemical treatment is needed.
What is the density of Green Plastwood chaukhats?
Chaukhats are made at 750 to 1200 kg/m³. In lab testing by Alekh Plastics Testing Centre (Nov 2022) a door-frame sample showed 0.90 g/cc density, 0.2% water absorption, a UL-94 V-0 flammability rating and 2236 N screw withdrawal force.
Which colours are available?
Light Ivory, Yellow Ivory, Pure White, Beach White, Teak Wood, Chocolate Brown, Coco Brown and Black. Other (NFC) colours can be made on bulk orders.
Can a WPC chaukhat be painted or polished?
Yes. The frame can be painted, polished or laminated, and polishing costs less than on wood. Regular re-polishing is not needed.
How is a WPC chaukhat installed?
The same way as a wooden one. The posts and head are cut, joined at the corners and fixed in the wall opening with screws, using normal carpentry tools.
Can sizes be customised?
Yes. Size, length, density and colour can be customised on bulk orders. Send us your drawing or requirement.
- Since 201213 years of WPC manufacturing
- 3 Plantsmanufacturing in Gujarat
- 300+ Projects50+ stock points · 4+ export countries
- ISO 9001:2015certified · lab-tested products
Get A Quote For WPC Chaukhat
Share 4 details and we will call you back with price, sizes and stock.
